Outdoor Wi-Fi 7 access point with maximum throughput of 5100 Mbps for demanding industrial and municipal applications.

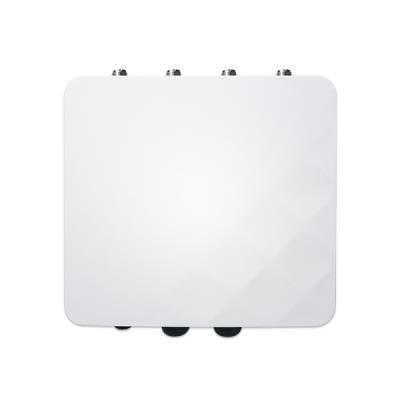

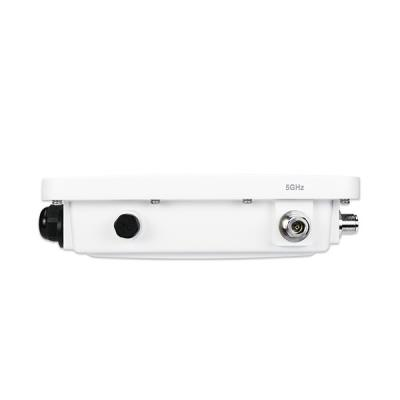

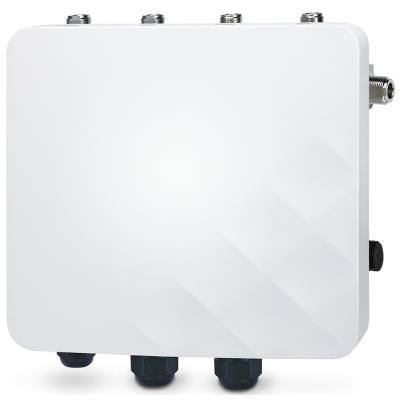

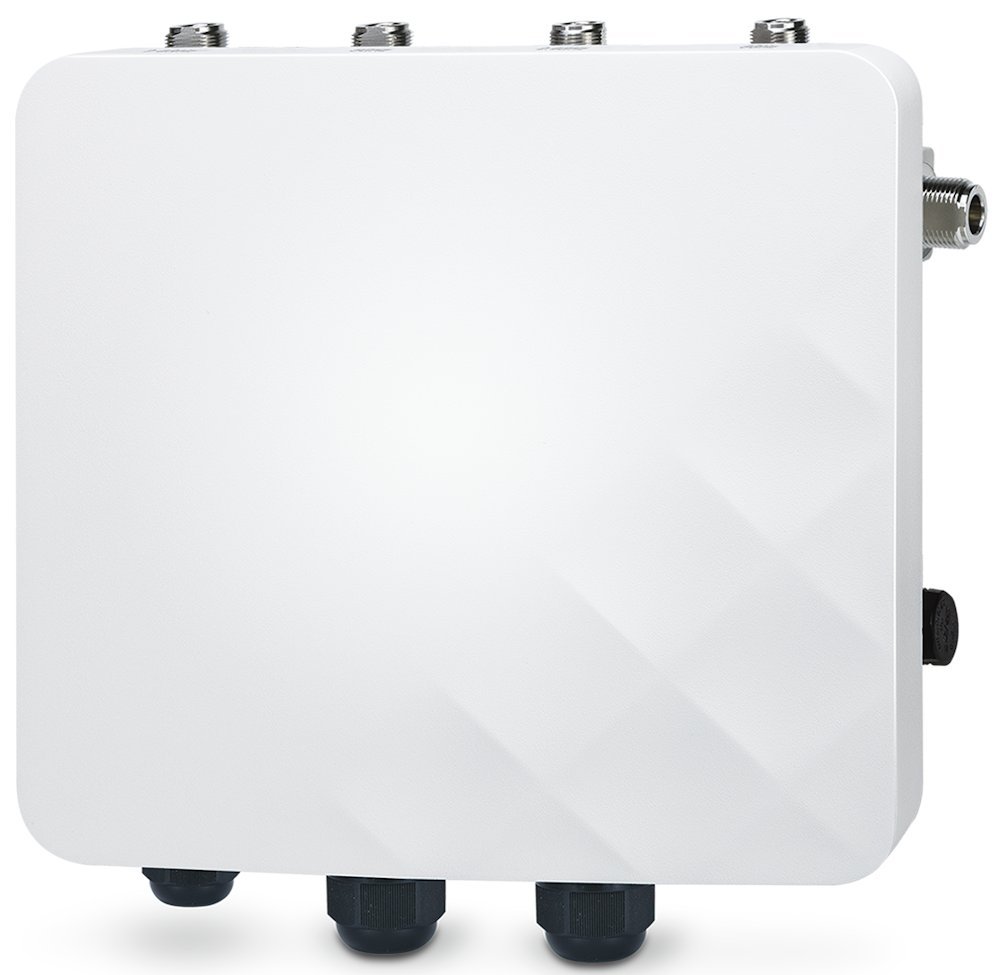

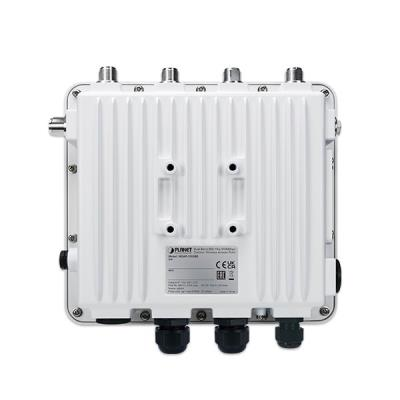

PLANET WDAP-5100BE represents a top-tier outdoor access point with 2×2 (2.4 GHz) + 3×3 (5 GHz) Wi-Fi 7 architecture, achieving total throughput up to 5100 Mbps (2.4 GHz: 688 Mbps, 5 GHz: 4323 Mbps). Thanks to advanced Wi-Fi 7 technologies including EHT modulation, 4096-QAM, OFDMA, MU-MIMO and BSS Coloring, it provides ultra-fast connectivity with minimal latency and highly efficient spectrum utilization even in environments with high client density or interference.
The device is constructed in a rugged aluminum housing with IP67 certification, which ensures complete protection against dust and heavy water exposure. The industrial design supports extreme operating temperatures from -40 to +70 °C, making it suitable for deployment in freezing climates as well as intense outdoor solar radiation. Enhanced lightning protection circuits and mechanical durability guarantee reliable operation on poles, rooftops, building facades or exposed industrial locations.
Flexible operating modes and advanced wireless features
The access point supports several operating modes including Gateway, AP, Repeater and WISP, allowing adaptation to various network topologies. Roaming functionality according to 802.11k/v/r standards ensures uninterrupted connectivity when devices move across extensive outdoor spaces. Wi-Fi Multimedia (WMM) optimizes audio and video data transmission, while real-time Wi-Fi channel analysis helps minimize interference.
Advanced security and network segmentation
The device offers comprehensive security features including WPA3 Personal, WPA2/WPA3 Personal and WPA2 Enterprise encryption. It supports SSID to VLAN mapping (IEEE 802.1Q, VID 1–4094), IP/MAC filtering and client isolation. ACL management prevents unauthorized access and ensures network segmentation for different user groups.
Easy deployment and centralized management
Power over 802.3at PoE+ simplifies installation by combining power and data in a single Ethernet cable. The access point is fully compatible with the PLANET CloudNMS platform and mobile app, enabling remote management, monitoring and instant failure alerts. Scheduled automatic system restart functionality ensures a self-healing mechanism for long-term reliable operation.
Application scenarios
WDAP-5100BE is optimized for smart city deployments with high throughput for outdoor surveillance systems and public internet. It is suitable for extreme industrial environments including logistics, extensive resorts, agricultural facilities, large campuses, stadiums, festivals and transportation hubs with high density of simultaneously connected users.
KEY SPECIFICATIONS
Standard: IEEE 802.11a/b/g/n/ac/ax/be (Wi-Fi 7), dual-band
Maximum throughput: 5100 Mbps (2.4 GHz: 688 Mbps, 5 GHz: 4323 Mbps)
Architecture: 2×2 (2.4 GHz) + 3×3 (5 GHz)
Frequency: 2.412–2.472 GHz (ETSI), 5.180–5.700 GHz (ETSI)
Modulation: 4096-QAM, OFDMA, MU-MIMO, Beamforming, BSS Coloring

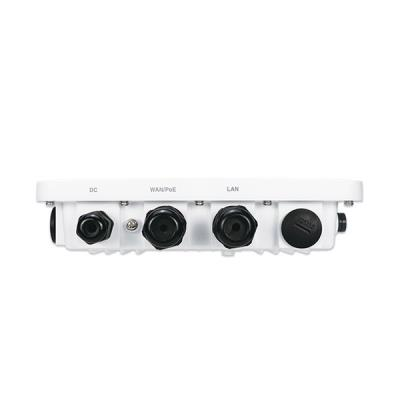

WAN port: 1× 100/1000/2500BASE-T RJ-45 (802.3at PoE+ PD)
LAN port: 1× 10/100/1000BASE-T RJ-45

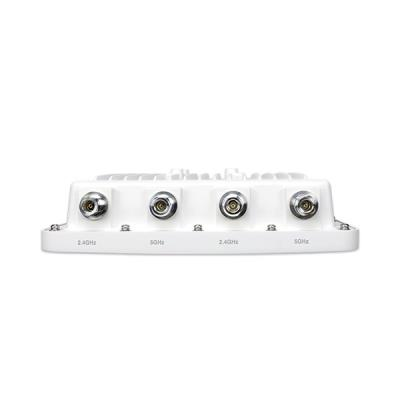

Antenna connectors: 5× N-Type (2× 2.4 GHz + 3× 5 GHz)
Maximum SSIDs: 8 (4 per band)
Maximum clients: 256 (recommended 128)
Security: WPA3 Personal, WPA2/WPA3 Personal, WPA2 Enterprise, ACL, VLAN
Power supply: IEEE 802.3at PoE+, DC 12 V / 2 A
Power consumption: max. 10.5 W (full load)
Operating temperature: -40 to +70 °C
Ingress protection: IP67
Dimensions: 243.16 × 218.26 × 64.04 mm (without antennas)
Weight: 2.0 kg
Material: aluminum
Certifications: CE, RoHS
| Brand | |
| Type specification : | Access point |
| Manufacturer : | PLANET Technology |
| Technical specification | |
| Sensitivity (dBm) : | -97 (1 Mbps), -92 (6 Mbps) |
| Management : | yes |
| Modulation : | BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM, 4060QAM, DBPSK, DQPSK, CCK |
| Network Management System (NMS) : | yes |
| Outdoor use : | yes |
| Indoor use : | no |

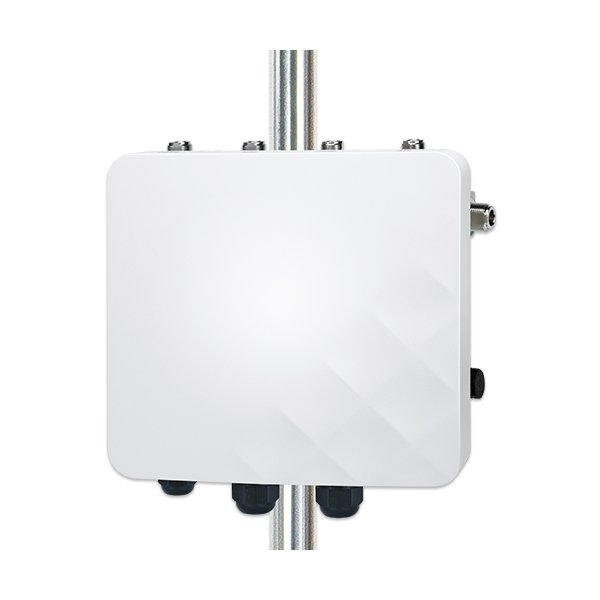

| Placement : | Mast mounting |
| Max. operating temperature (°C) : | 70 |
| Min. operating temperature (°C) : | -40 |
| Industrial design : | yes |
| Data Rate (Mbps) : | 688 (2,4GHz), 4323 (5GHz) |
| Network interfaces | |
| Wi-Fi frequency : | 2400 MHz/5000 MHz |
| Gigabit LAN : | yes |
| LAN : | yes |
| Max. output power (dBm) : | 24 |
| Port Speed : | 1 Gb/s + 2,5 Gb/s |
| Standard Wi-Fi : | 802.11a/b/g/n/ac/ax/be |
| Encryption : | WPA2/WPA3 Personal, WPA/WPA2 Personal (TKIP+AES), WPA/WPA2 Enterprise |
| Wi-Fi : | yes |
| WEP security : | no |
| WPA security : | yes |
| WPA2 security : | yes |
| WPA3 security : | yes |
| Antenna | |
| Connectable antennas : | 5 |
| Antenna type : | without own antenna (N-Type) |
| Inputs and outputs | |
| Total number of ports : | 2 |
| RJ-45 : | 2 |
| Power supply | |
| Input voltage (V) : | 12 (DC) |
| Power type : | PoE active (802.3at) |
| Power type : | external adapter |
| PoE support : | yes |
| Warranty | |
| Warranty period EU (months) : | 26 |
| Warranty period CRN (months) : | 26 |
| Physical properties | |
| Color : | white |
| Weight (g) : | 2000 |
| Weight (kg) : | 2.0 |
| Dimensions : | 243,16 × 218,26 × 64,04 mm |
| Additional equipment and features | |
| Certification mark : | CE, RoHS |
