Unknown availability

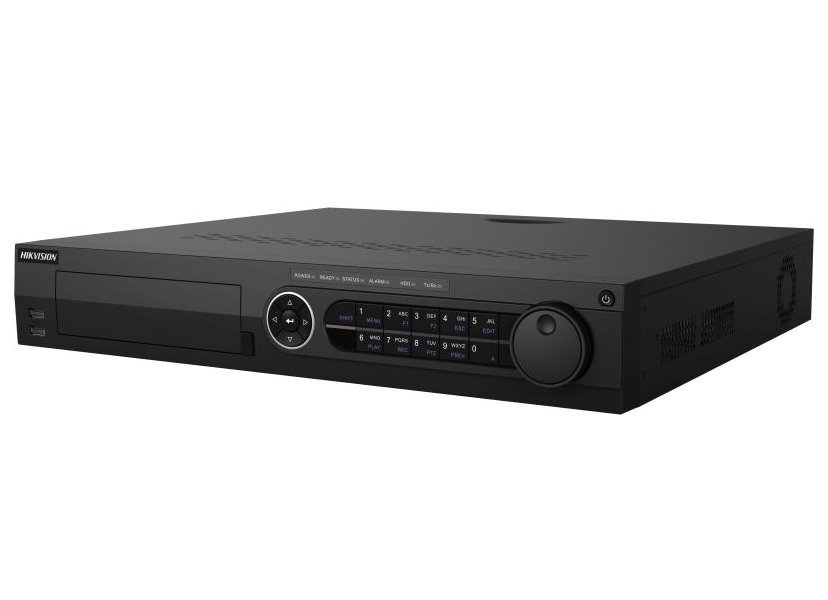

Advanced DVR with AcuSense technology and deep learning analysis for professional security systems.
5-in-1 hybrid recording device for 16 analog and 18 IP cameras with resolution up to 8 Mpx. Thanks to advanced AcuSense technology with deep learning, it can accurately distinguish between people, vehicles and other objects, dramatically reducing false alarms caused by leaves, lights or animals.
The device supports Motion Detection 2.0 for all analog channels and offers perimeter protection with advanced analytics for up to 8 selected channels. Thanks to efficient H.265 Pro+ compression, it significantly reduces storage space requirements while maintaining high recording quality. The Hik-Connect app and DDNS enables easy network management.
AcuSense
Hikvision AcuSense deep learning technology offers human and vehicle recognition, which can significantly reduce false alarms.
WARNING
Motion detection 2.0 and perimeter protection cannot be enabled simultaneously. Enabling one function will deactivate the other.
When connecting more than 2 IP cameras (without disabling BNC inputs), it is necessary to enable enhanced IP mode in the recorder menu. However, the recorder will lose all intelligent functions on analog inputs.
It will record based on ordinary motion detection or continuous recording.
Advanced video outputs and playback
The DVR offers dual HDMI outputs including 4K support on HDMI2 port, VGA output and analog CVBS output. Supports simultaneous playback of up to 16 channels in 1080p resolution at 30 fps with quick search capability by object type or event.
Flexible storage and network options
In addition to 4 internal SATA ports, it also features an eSATA interface for external storage. Network connectivity includes 2 Gigabit Ethernet ports with total bandwidth of 320 Mbps and support for up to 128 remote connections.
Rich interface and control
Available are RS-232 and RS-485 serial ports, 16 alarm inputs and 4 outputs, audio inputs/outputs and bidirectional audio channel. The front panel contains 2× USB 2.0, rear panel 1× USB 3.0 port.
BASIC SPECIFICATIONS
Video inputs: 16× analog (BNC), 18× IP (when BNC deactivated up to 34 IP)
Recording resolution: 8 Mpx at 8 fps, 3K at 12 fps, 5 Mpx at 12 fps, 4 Mpx at 15 fps, 3 Mpx at 18 fps, 1080p/720p/WD1/4CIF/VGA/CIF at 25/30 fps
Video compression: H.265 Pro+, H.265 Pro, H.265, H.264+, H.264

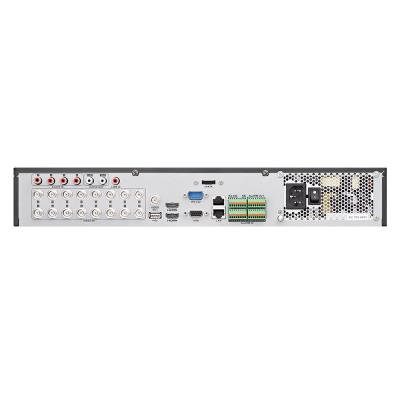

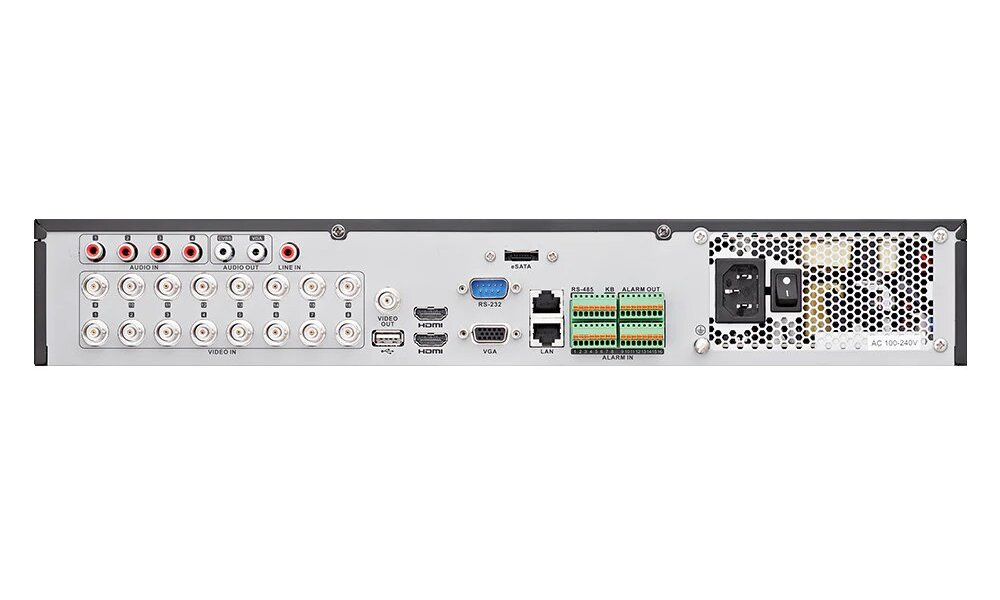

Ports: 16× BNC, 1× CVBS video output (BNC), 1× HDMI 4K output, 1× HDMI Full HD output, 1× VGA Full HD output, 2× USB 2.0, 1× USB 3.0, 2× GbE RJ-45, 1× RS-485, 1× RS-232, 1× keyboard interface (terminal block), 1× eSATA, 5× audio input, 1× audio output, 16× alarm input, 4× alarm output
HDD: 4× SATA (max. 12 TB/disk), RAID 0/1/5/6/10
Network: 2× Gigabit Ethernet, total bandwidth 320 Mbps
PoE support: no
Dimensions: 440 × 399 × 72 mm
Weight: ? 5 kg
Power consumption: ? 35 W (without HDD)
| Brand | |
| Type specification : | Recorder |
| Manufacturer : | Hikvision |
| Technical specification | |
| Fanless : | no |
| Max. AHD recording resolution (Mpx) : | 4 |
| Max. HD-CVI recording resolution (Mpx) : | 2 (1080p) |
| Max. HD-TVI recording resolution (Mpx) : | 4 |
| Max. IP recording resolution (Mpx) : | 8 |
| Placement : | rack |
| Video codecs : | H.265 |
| Video codecs : | H.265 Pro |
| Video codecs : | H.265 Pro+ |
| Video codecs : | H.264 |
| Video codecs : | H.264+ |
| NVR videoanalytics : | IVS, libovolná kamera |
| Inputs and outputs | |
| Alarm in/out : | yes |
| Audio in/out : | Audio line in/out |
| HDMI : | 2 |
| Heterogeneous - independent video outputs : | ano |
| Disc slots : | 4 |
| Number of connectable BNC cameras : | 16 |
| Connectable IP cameras : | 18 |
| RAID controller : | yes |
| RS-485 port : | yes |
| USB 2.0 : | 2 |
| USB 3.0 : | 1 |
| VGA : | 1 |
| Video output : | HDMI Full HD |
| Video output : | HDMI 4k |
| Video output : | VGA |
| Power supply | |
| Integrated battery : | no |
| Power supply for PoE/PoC cameras : | no |
| Warranty | |
| Warranty period EU (months) : | 36 |
| Warranty period CRN (months) : | 36 |
