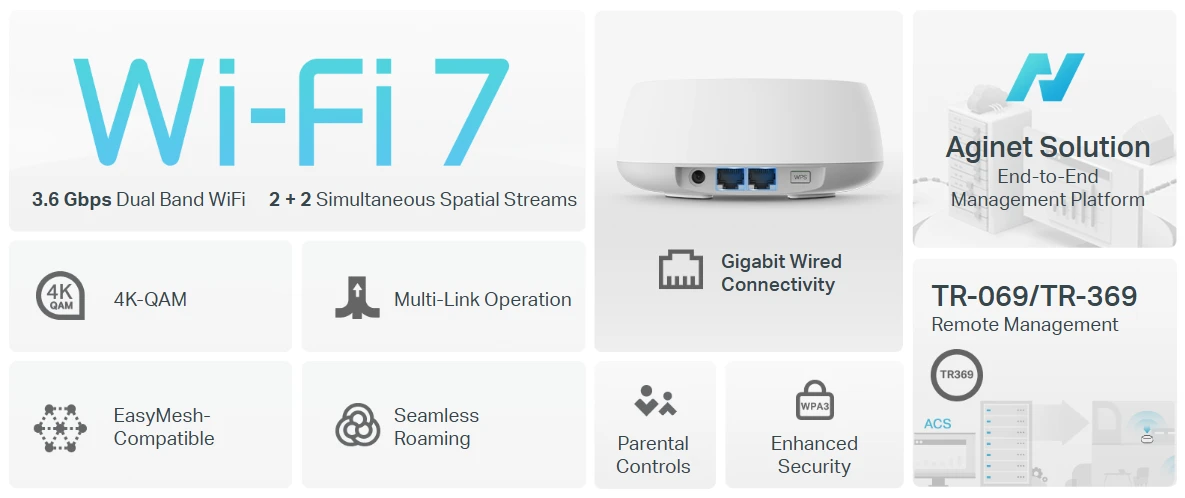

Revolutionary Wi-Fi 7 mesh system with an aggregated speed of 3.6 Gb/s for whole-home coverage.
Introducing an advanced mesh system utilizing the latest Wi-Fi 7 standard (IEEE 802.11be) with innovative Multi-Link Operation (MLO) technology. The system offers dual-band connectivity on 2.4 GHz (688 Mb/s) and 5 GHz (2880 Mb/s) frequencies with 4 spatial streams and support for 4K-QAM modulation to ensure maximum data transfer efficiency.
Each unit is equipped with 4 high-gain antennas featuring Beamforming technology for precise signal direction and 2 gigabit Ethernet ports (1× WAN/LAN, 1× LAN) for fast wired connections. The system is compatible with the EasyMesh standard and supports seamless roaming with 802.11k/v/r protocols.
Advanced Wi-Fi 7 Technologies
Multi-RUs technology fully utilizes all available resources for maximum efficiency. BSS Color and Airtime Fairness ensure optimal bandwidth distribution among connected devices. Beamforming technology precisely directs the signal to individual devices.
Flexible Operating Modes
The system supports router mode for creating a private network and access point mode for extending an existing wired network. Both Ethernet and wireless backhaul work together for optimal mesh performance.
Professional Management
Support for TR-069, TR-098, TR-181, TR-369, TR-111, and TR-143 protocols allows ISPs to configure and manage the device remotely. End users can use the intuitive Aginet app for smartphones and tablets.
BASIC SPECIFICATIONS
Wireless Standards: IEEE 802.11be/ax/ac/n/a (5 GHz), IEEE 802.11be/ax/n/g/b (2.4 GHz)
Speeds: 5 GHz up to 2880 Mb/s (EHT160), 2.4 GHz up to 688 Mb/s (EHT40)
Antennas: 4× high-gain antennas with beamforming technology
Ethernet Ports: 1× GbE WAN/LAN port, 1× GbE LAN port (per unit)
Security: WPA/WPA2/WPA3-Personal, Multi-SSID (2× per band)
Advanced Features: Multi-Link Operation, 4K-QAM, Multi-RU, OFDMA, BSS Color
Management: Aginet app, web interface, TR-069/TR-369 remote management
Power Supply: 12V/1.5A external adapter
Dimensions: 150 × 150 × 62 mm
Operating Temperature: 0 to +40 °C
| Brand | |
| Type specification : | Access point |
| Manufacturer : | TP-LINK |
| Technical specification | |
| Modulation : | 4096 QAM, OFDMA |
| Outdoor use : | no |
| Indoor use : | yes |
| Placement : | desktop |
| Max. operating temperature (°C) : | 40 |
| Min. operating temperature (°C) : | 0 |
| Data Rate (Mbps) : | 2880 (5GHz), 688 (2,4GHz) |
| Pack : | 1-pack |
| Display | |
| Display : | no |
| Communication | |
| 3G support : | no |
| 4G/LTE support : | no |
| 5G support : | no |
| Network interfaces | |
| Wi-Fi frequency : | 2400 MHz/5000 MHz |
| Gigabit LAN : | yes |
| LAN : | yes |
| Max. output power (dBm) : | 30 |
| Standards : | 802.11a/b/g/n/ac/ax/be, 802.11k/v/r |
| Port Speed : | 1 Gb/s |
| Standard Wi-Fi : | 802.11a/b/g/n/ac/ax/be |
| Encryption : | WPA-Personal, WPA2-Personal, WPA3-Personal |
| Wi-Fi : | yes |
| WEP security : | no |
| WPA security : | yes |
| WPA2 security : | yes |
| WPA3 security : | yes |
| Antenna | |
| Antenna type : | internal |
| Inputs and outputs | |
| RJ-45 : | 2 |
| Card reader | |
| MicroSD card support : | no |
| Power supply | |
| Input voltage (V) : | 12 (DC) |
| PoE support : | no |
| Warranty | |
| Warranty period EU (months) : | 36 |
| Warranty period CRN (months) : | 36 |
| Support | |
| SIM slot : | no |
| Physical properties | |
| Color : | white |
| Dimensions : | 150 × 150 × 62 mm |
| Additional equipment and features | |
| Certification mark : | CE |
