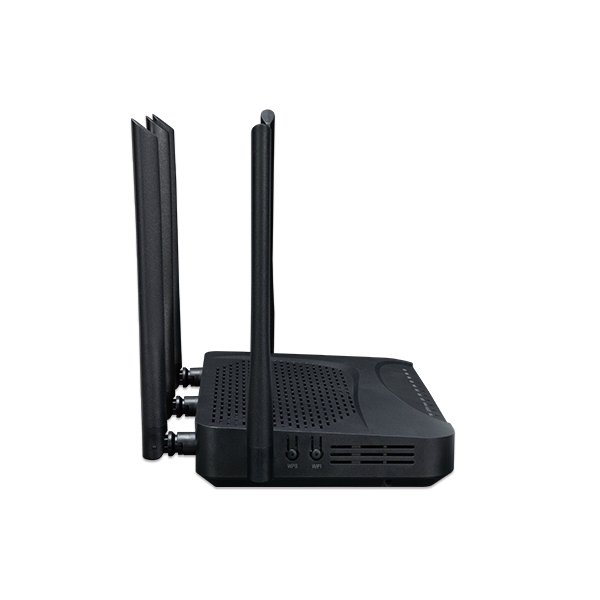

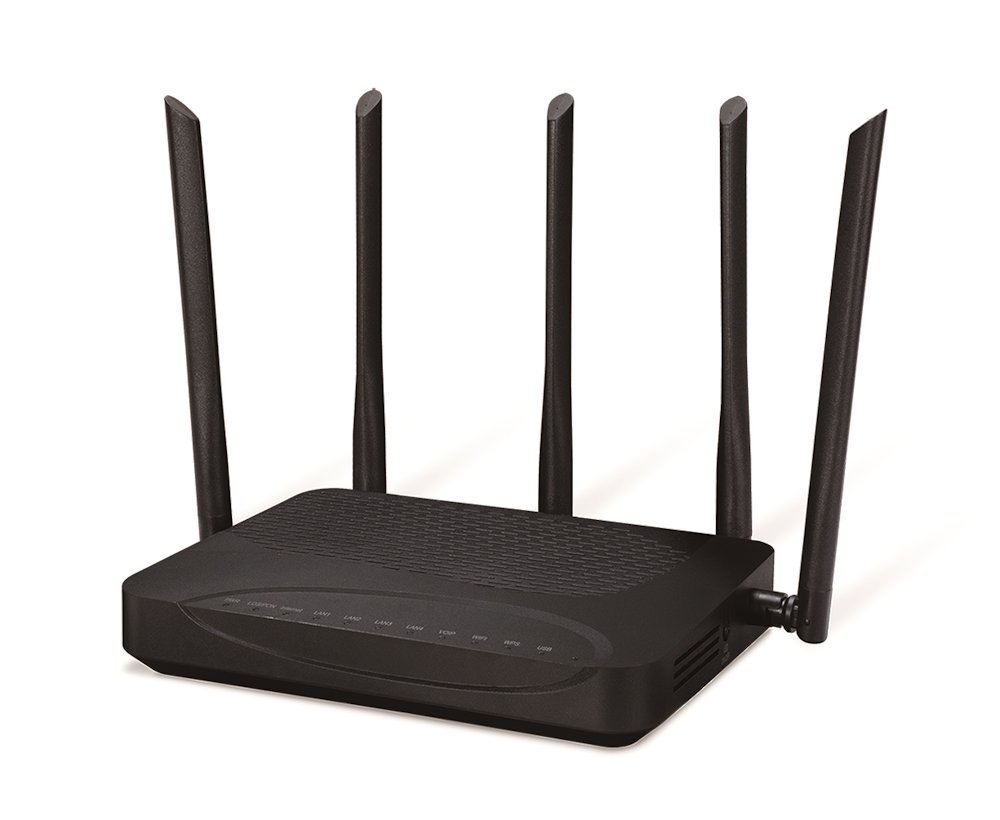

High-performance XG-PON Home Gateway unit designed for advanced FTTH deployment with integrated Wi-Fi 6 technology and VoIP support.
PLANET XGPN-400AXV represents a complete solution for Fiber-To-The-Home applications, combining ultra-fast XG-PON connectivity with advanced networking features. The device offers 10 Gbps downstream and 2.5 Gbps upstream speeds through a single optical port and enables maximum range up to 20 kilometers with 1:256 split ratio support.
With integrated Wi-Fi 6 technology providing speeds up to 3000 Mbps, four Gigabit Ethernet ports, and an RJ-11 FXS VoIP port, it is ideal for triple-play services including high-speed internet, IP telephony, and IPTV. Advanced QoS features with eight priority queues ensure optimal bandwidth allocation for various services.
Advanced wireless connectivity
Wi-Fi 6 technology supports simultaneous transmission on 2.4 GHz (up to 574 Mbps) and 5 GHz (up to 2402 Mbps) frequencies with OFDMA modulation. The device is backward compatible with 802.11b/g/n/ac standards and supports up to 128 wireless clients simultaneously with advanced features such as band steering and WMM.
Comprehensive security features
Integrated firewall provides filtering at MAC/IP/Port/URL/Domain address level with protection against DDoS attacks. Wi-Fi security includes WEP, WPA, WPA2-PSK, and the latest WPA3-SAE encryption with WPS support and client isolation.
Professional management and monitoring
The device supports remote management via TR-069, OMCI, and OAM protocols with firmware update capability through TFTP, Web interface, or directly from OLT. LED indicators provide complete overview of the status of all ports and services.
BASIC SPECIFICATIONS
XG-PON port: 1× SC/UPC, 10Gbps downstream & 2.5Gbps upstream
Ethernet ports: 4× 10/100/1000 BASE-T RJ-45
VoIP port: 1× RJ-11 FXS
USB port: 1× USB
Wi-Fi standard: IEEE 802.11ax (Wi-Fi 6), dual-band up to 3000 Mbps
Antennas: 5× external
Optical transmission range: up to 20 km
Receiver sensitivity: ≤-28dBm
Transmitter optical power: 0.5~5 dBm
Power supply: 12 V DC, (1.5 A max.)
Power consumption: 7.32 W max.
Operating temperature: 0 to +50 °C
Dimensions: 185 × 135 × 36 mm (without antennas)
Weight: 494 g
Standards: ITU-T G.987.3, G.988, G.989, IEEE 802.1Q
| Brand | |
| Type specification : | PON - GPON |
| Manufacturer : | PLANET Technology |
| Inputs and outputs | |
| PON : | 1 |
| RJ-45 : | 4 |
| Power supply | |
| Power type : | external adapter |
| Warranty | |
| Warranty period EU (months) : | 26 |
| Warranty period CRN (months) : | 26 |
| Physical properties | |
| Color : | black |
| Weight (g) : | 494 |
| Dimensions : | 185 × 135 × 36 mm |
Code: NAAUBT1135
