Industrial 10Gbit media converter with two optical ports for demanding environments and remote management.

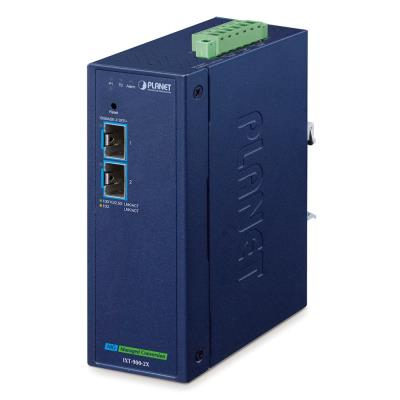

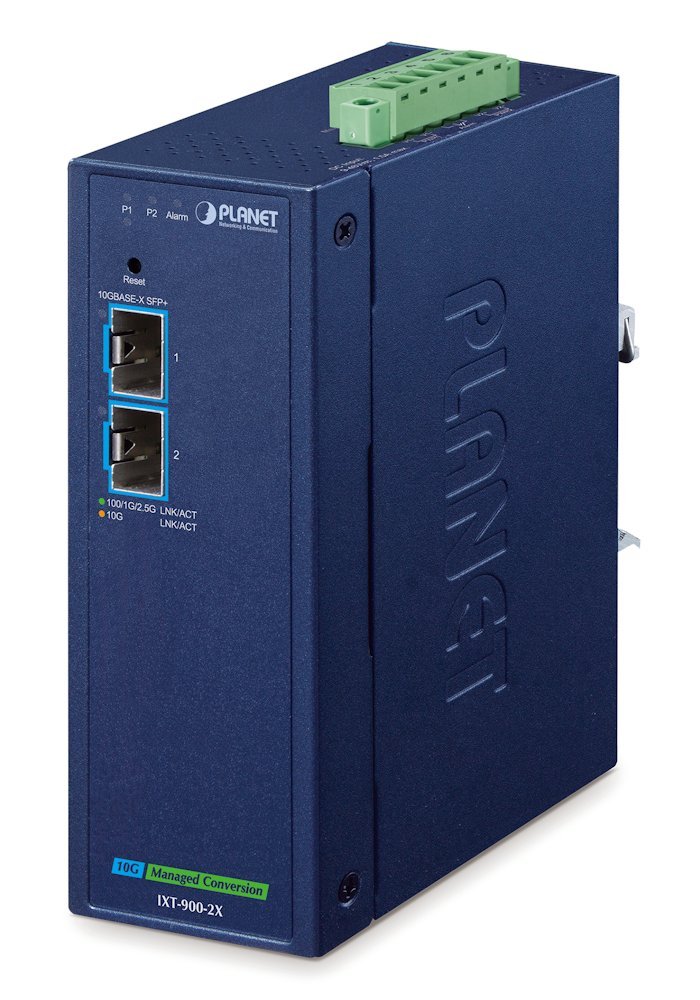

PLANET IXT-900-2X is a high-performance industrial media converter equipped with two 10G/2.5G/1G/100Base-X SFP+ ports for optical fibers. This enables conversion between single mode and multimode optical fibers or between PON and Ethernet. The device is designed for extreme conditions with an extended temperature range of -40 to +75 °C and IP40 industrial housing, providing high resistance to electromagnetic interference and electrical surges.
The converter offers comprehensive remote management options via web interface, CLI (Command Line Interface), and SNMP protocol. It supports advanced security protocols SSHv2, TLSv1.2, and SNMPv3 for protection against cyber threats. The device is suitable for deployment in industrial applications, telecommunications, FTTH/FTTC/FTTB networks, and critical infrastructures.
Redundant ring topology with fast recovery
The device supports ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) technology, which ensures redundant ring topology with automatic recovery under 500 ms during link failure. This feature is critical for applications requiring high network availability.
Link Fault Pass-through for efficient network management
The Link Fault Pass-through function automatically detects failure on one port and propagates the error information to the other port. This allows connected devices to respond immediately, such as by rerouting traffic or deactivating the affected port, minimizing downtime and accelerating troubleshooting.
Advanced Layer 2 features
The converter features a 16K MAC address table with automatic aging (auto-aging), support for IEEE 802.1Q VLAN up to 256 groups from 4096 VLAN IDs, IEEE 802.1ad Q-in-Q tunneling, and Storm Control for broadcast/multicast/unknown unicast traffic. These features ensure efficient network management and segmentation.
Dual IPv4/IPv6 stack
The device fully supports both IPv4 and IPv6 protocols, enabling easy transition to IPv6 networks without the need to replace network infrastructure. This is ideal for telecommunications operators building next-generation FTTx networks.
Diagnostics and monitoring
The SFP-DDM (Digital Diagnostic Monitor) function enables real-time monitoring of SFP transceiver parameters including optical output and input power, temperature, laser diode current, and supply voltage. The system also supports remote syslog, SNMP trap notifications, and 4 RMON groups for comprehensive network monitoring.
Mounting and installation

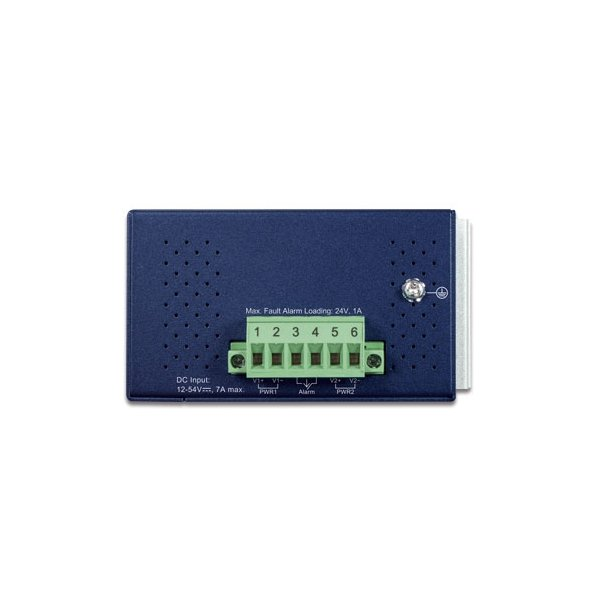

The converter is supplied with accessories for wall and DIN rail mounting, ensuring flexible installation in cabinets, industrial enclosures, or outdoor boxes. Power supply is via a removable 6-pin terminal block with dual input for redundant power supply.
KEY SPECIFICATIONS
Optical interfaces: 2× 10G/2.5G/1G/100Base-X SFP+ slot
Switching capacity: 40 Gbps
Throughput: 29.76 Mpps at 64 bytes
MAC address table: 16K entries with automatic aging
Jumbo Frame: up to 9K
VLAN: IEEE 802.1Q up to 256 groups from 4096 VLAN IDs, IEEE 802.1ad Q-in-Q
Redundancy: ITU-T G.8032 ERPS with recovery < 500 ms
QoS: 8 priority queues, IEEE 802.1p CoS, DSCP, IP Precedence
Management: web HTTP/HTTPS, Telnet, CLI, SNMPv1/v2c/v3, SSHv2, TLSv1.2
Security: IP access management, static MAC, MAC filtering
Power supply: dual 9–48 V DC or 24 V AC
Power consumption: 3.2 W (no load) / 5.6 W (full load)
Operating temperature: -40 to +75 °C
Protection: IP40, metal housing
ESD protection: 4 kV contact / 8 kV air
Dimensions: 135 × 86.4 × 50 mm
Weight: 576 g
Mounting: wall, DIN rail
Certification: FCC Part 15 Class A, CE, IEC60068-2-32/27/6
| Brand | |
| Type specification : | Converter |
| Manufacturer : | PLANET Technology |
| Technical specification | |
| Conversion : | optics |
| Management : | yes |
| Placement : | DIN rail |
| Placement : | wall mount |
| Industrial design : | yes |
| Port speed – optical : | 10 Gb/s |
| Network interfaces | |
| Port Speed : | 10 Gb/s |
| Connector type : | SFP+ |
| Warranty | |
| Warranty period EU (months) : | 60 |
| Warranty period CRN (months) : | 60 |
| Physical properties | |
| Color : | blue |
| Weight (g) : | 576 |
| Dimensions : | 135 × 86,4 × 50 mm |
Code: NACTPL0015
