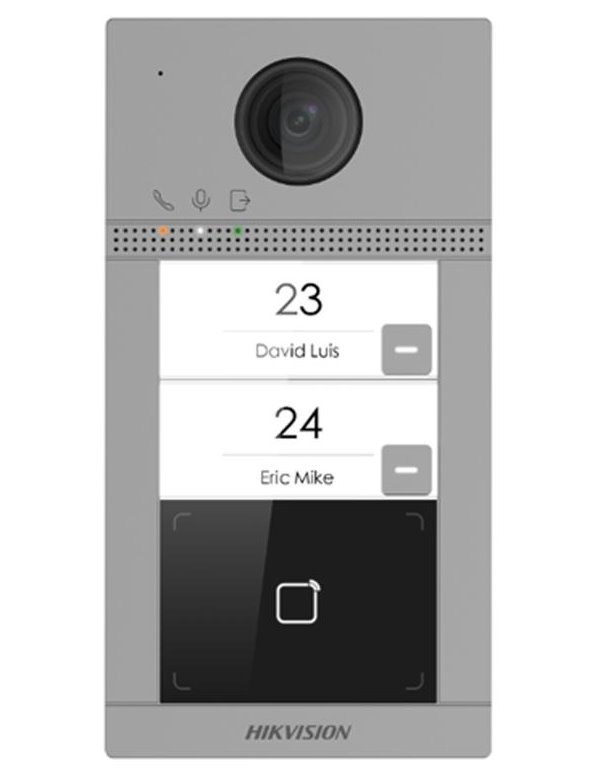

IP door station (intercom) equipped with two doorbells, Wi-Fi (2.4 GHz) and a camera with 2 Mpx resolution and IR illumination. The camera's field of view is 124° horizontally and 75° vertically. For video transmission it uses H.264 codec and for audio transmission G.711U, G.711A codecs. Integrated microphone, speaker, RFID 13.56 MHz (Mifare) access card reader and microSD card reader are standard features. Connection is realized via TCP/IP protocol with 10/100 Mbps speed (RJ-45) + RTSP support. Surface mount, resistance to adverse conditions according to IP65 and IK08 (anti-vandal) certification.
BASIC SPECIFICATIONS
Camera: 2 Mpx, 1920 × 1080, H.264, WDR, IR illumination, integrated microphone and speaker
Lens: fixed, field of view horizontally 124°, vertically 75°
Display: no
Keypad: no
Number of doorbells: 2
ID card reader: yes, frequency 13.56 MHz (Mifare)
Interface: Wi-Fi (2.4 GHz), 1× RJ-45, 1× RS-485, 4× alarm input, 2× exit button, 2× lock control, 2× door contact input
Network: 1× RJ-45 Ethernet 10/100 Mbps, TCP/IP, RTSP support
Power supply: DC 12 V or PoE (802.3af)
Power consumption: up to 10 W
Protection: water resistance IP65, anti-vandal IK08
Dimensions: 174 × 91 × 29 mm
| Brand | |
| Type specification : | IP - Dveřní stanice IP |
| Manufacturer : | Hikvision |
| Technical specification | |
| Outdoor use : | yes |
| Placement : | na zeď |
| Ingress protection : | IP65 |
| Control | |
| Communication interface : | LAN |
| Communication interface : | RS-485 |
| Communication interface : | Wi-Fi |
| Numeric keypad : | no |
| Autonomous : | no |
| Inputs and outputs | |
| Audio/video : | video + audio |
| Power supply | |
| Napájení z el. sítě : | 12V svorkovnice |
| PoE standard : | aktivní (802.3af) |
| Warranty | |
| Warranty period EU (months) : | 36 |
| Warranty period CRN (months) : | 36 |
| Security | |
| Smart Card Reader : | yes |
| RFID standard : | 13,56 MHz |
| Fingerprint Reader : | no |
| Physical properties | |
| Color : | stříbrná |
| Weight (g) : | 370 |
| Material : | hliník, plast |
| Počet zvonků : | 2 |
| Dimensions : | 174 × 91 × 29 mm |
