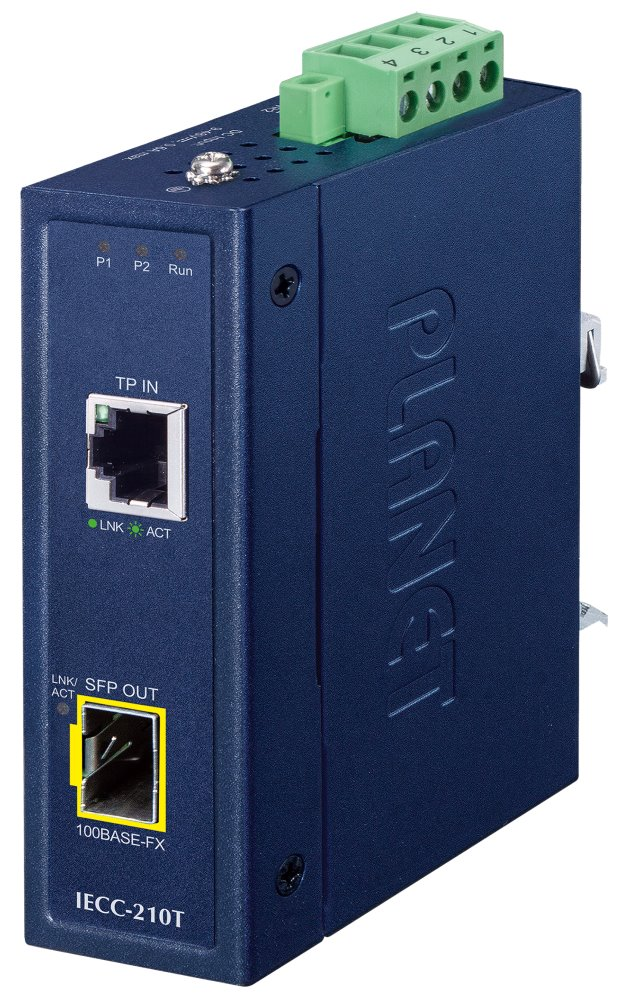

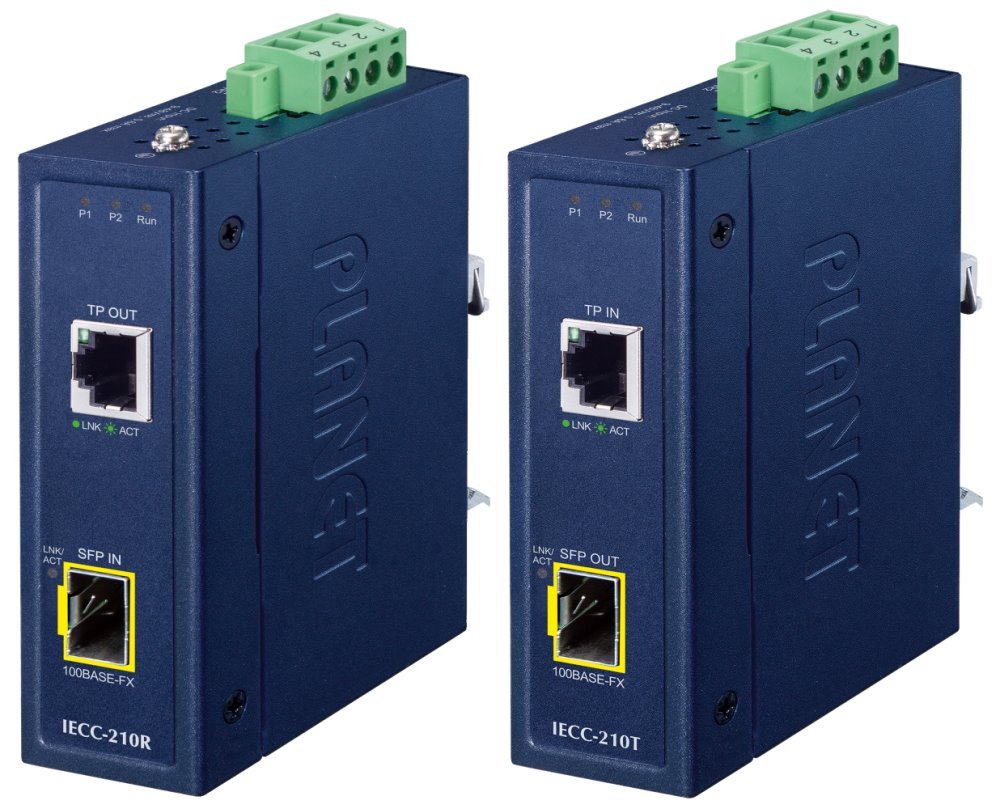

The industrial converter set IECC-210T and IECC-210R allows extending the communication distance within an EtherCAT network up to 60 km. IECC-210T serves as a converter from metallic cable to optical fiber, while IECC-210R converts the signal from optical fiber to metallic cable. Communication via IP protocol in conjunction with EtherCAT protocol is used in automation and real-time device control. Dual power input increases the reliability and operational capability of the entire system.
Industrial Ethernet devices are designed for demanding operating conditions with a wide range of operating temperatures, uncertain power supply and frequent vibrations, enabling the deployment of well-known Ethernet technology in industrial environments. It is also suitable for installations in outdoor cabinets with large fluctuations in operating temperatures (typically wireless and MAN ISP applications). Wall mounting (mounting bracket included) or DIN rail mounting.
BASIC SPECIFICATIONS
Kit contents:
Network features:
Physical features:
Ports: 1× RJ-45 100BASE-TX, 1× 100BASE-FX SFP
EtherCAT support: yes
Protection: IP30, metal housing
Power supply: dual (2× 2-pin), 9–48 V DC external power supply (not included), max. power consumption 1.92 W
Operating temperature: –40 °C to +75 °C, humidity 5–95 %
Dimensions: 104 × 70 × 33 mm
Industrial features:
device is resistant to drops (IEC-60068-2-32) from a height of 75 cm on all impact surfaces
device is resistant to vibrations (IEC-60068-2-6)
device is resistant to overload with short-term acceleration of 50 g, long-term 4 g, (IEC-60068-2-27)
electrical safety according to CE EN-60950
EMC Electromagnetic Compatibility (EMI):
EN 55032:2015+AC 2016 - Electromagnetic compatibility of multimedia equipment
EMC immunity requirements (EMS):
EN 55024 A1:2015 - Information technology equipment
EN 55035:2017 - Electromagnetic compatibility of multimedia equipment
EN 61000-4-2:2008 - Electrostatic discharge ESD
EN 61000-4-3 A2:2010 - Radiated radio-frequency electromagnetic field
EN 61000-4-4:2012 - Electrical fast transient/burst EFT
EN 61000-4-5:2014 - Surge immunity
EN 61000-4-6:2013 - Immunity to conducted disturbances, induced by radio-frequency fields
EN 61000-4-8:2009 - Power frequency magnetic field
EN 61000-4-11:2004 - Voltage dips, short interruptions and voltage variations
| Brand | |
| Type specification : | Gateway |
| Manufacturer : | PLANET Technology |
| Technical specification | |
| Conversion : | LAN/SFP |
| MODBUS support : | no |
| Placement : | na zeď |
| Placement : | DIN rail |
| Port speed – metallic : | 100 Mb/s |
| Port speed – optical : | 100 Mb/s |
| Network interfaces | |
| Port Speed : | 100 Mb/s |
| Warranty | |
| Warranty period EU (months) : | 38 |
| Warranty period CRN (months) : | 38 |
| Physical properties | |
| Color : | blue |
| Weight (g) : | 208 |
| Dimensions : | 104 × 70 × 33 mm |
| Weight category : | Lightweight - up to 2 kg |
